System Configuration Sensors > Configuring Sensors >> Mobile Data - TME MM7000
•TME MM7000 Initial Configuration
•Taking a Reading with the TME MM7000
•Upload Data to an ARB Module from a TME MM7000
The TME MM7000 ThermoBarScan is a hand held temperature recording device with a sensor probe, integral barcode scanner and Bluetooth capabilities. See Figure 443 below:
Figure 443
|
||

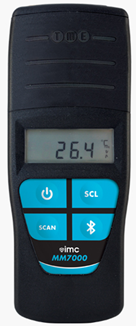

TME MM7000 |

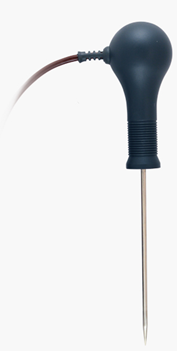

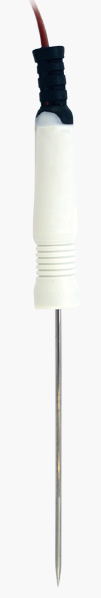

Typical Temperature/Thermocouple Probes |
The TME MM7000 can record product/area location and identity plus time, date and temperature, with the Bluetooth communication functionality enabling transmission of collected data to a PC, mobile phone, PDA or an ARB module.
•The initial configuration of the TME MM7000 is carried out via the IMC ThermoBarScan software installed on a PC.
•To access data uploaded to Synergy by the ARB Module and identified by specific barcodes scanned by the TME MM7000's barcode scanner:
1.Select Mobile Data from the main View Data menu.
2.Select Barcode Readings from the sub-menu.
•To add barcodes, allocated to specific locations, equipment etc., to Synergy:
1.Select Mobile Data from the main View Data menu.
2.Select Barcodes from the sub-menu.

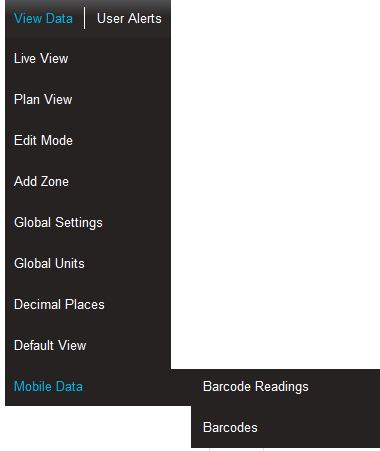

See Figure 444 below:
Figure 444
