Configuration is normally done on the network, but in some instances, it may be necessary to connect to the Smart Receiver(s) directly.
•Before the Smart Receiver(s) can be configured, fixed IP addresses should be assigned to each unit by the network manager.
•You should also know the Subnet and Gateway addresses.
•The Smart Receiver should be connected to the network using a straight-through network lead (supplied).
Use the following steps to assign the IP addresses to the Smart Receiver(s):
Either:
Click on the SR2 Network Settings icon on the home page (by default, the Utility is installed at: C:\Hanwell SR2Network)
Or:
Access the Network Configuration Tool at www.support.the-imcgroup.com/Utilities/SRNetworkConfig.zip
Or:
Run the Synergy Management Tool or Synergy Remote Management Tool. See Synergy Management Tool Manual (Document Number: IM5210) or Synergy Remote Management Tool Manual (Document Number: IM5242).
1.Select Tools from the main toolbar and then click on SR2 Network Configuration.
•The SR2 NW Network - Configuration utility's home page is displayed, with the Network tab selected. See Figure 103 below:
Figure 103
2.Click the Search icon on the Configuration Tool toolbar. See Figure 103 above.
•The program will search for any SR2s and populate the Board list field on the left of the window with a list of all of the SR2s on the network. See Figure 104 below:
Figure 104
•If there are no SR2s found you will need to get the IT Department to check the network.
•The SR2s can be connected directly to a laptop using a crossover cable to confirm their operation.
Note: | You must be on the same subnet for this broadcast to work. If not, tick the Direct IP Search box (See Figure 104 above). |
3.Click once on the Wiznet Mac address of the required Unit in the Board List field to select it (See Figure 104 above).
4.Enter the Network Configuration details into the Network field as specified by your Network Manager and/or as found on the Synergy Pre-Requisites document (Document Number: GD5209) i.e.:
•Local IP
Local IP must be as given to you by IT.
•Subnet
Subnet must be as given to you by IT.
•Gateway
Gateway must be as given to you by IT.
•Server IP
Server IP should be set to match the Local IP address
•Port
The Port numbers must both be the same and as given to you by IT and/or as found in the Synergy Pre-Requisites Document (Document Number: GD5209). IMC recommended Default Port Number 10992. See Figure 105 below:
Figure 105
5.On the Network tab, complete the following, additional, configuration tasks:
•Set Operation Mode to Server.
•Check the following options are NOT ticked:
•Enable Serial Debug Mode
•Enable DHCP Mode
•Use UDP Mode
See Figure 106 below:
Figure 106
6.Click on the Serial tab.
7.Select the following values from the highlighted fields' drop down lists on the Serial tab:
Smart Receiver Setting |
|
Speed |
115200 |
Parity |
None |
Data Bit |
8 |
Stop Bit |
1 |
Flow Ctrl |
CTS / RTS |

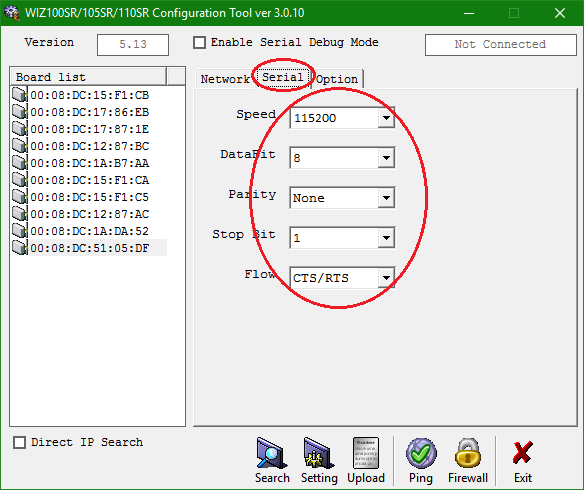

See Figure 107 below:
Figure 107
8.Enter the following values into the highlighted fields on the Option tab.
Smart Receiver Setting |
|
Inactivity Time |
10 |
Time |
5 |
Size |
255 |
Char |
00 |

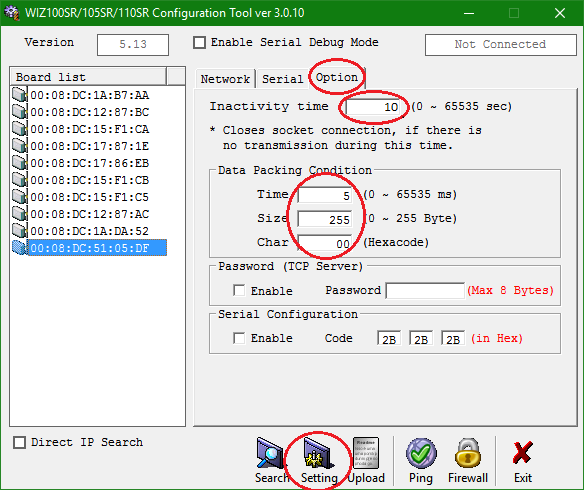

See Figure 108:
Figure 108
9.Once all the changes have been made, click on the Setting icon to save the configuration settings. See Figure 108 above.
•The following Status windows are displayed:
10.Click on Close on the Complete setting window.
11.Repeat steps 2 to 9 for any additional SR2s on the Network.
